Unrealistic Reverb

Bending Guide

Using This Guide

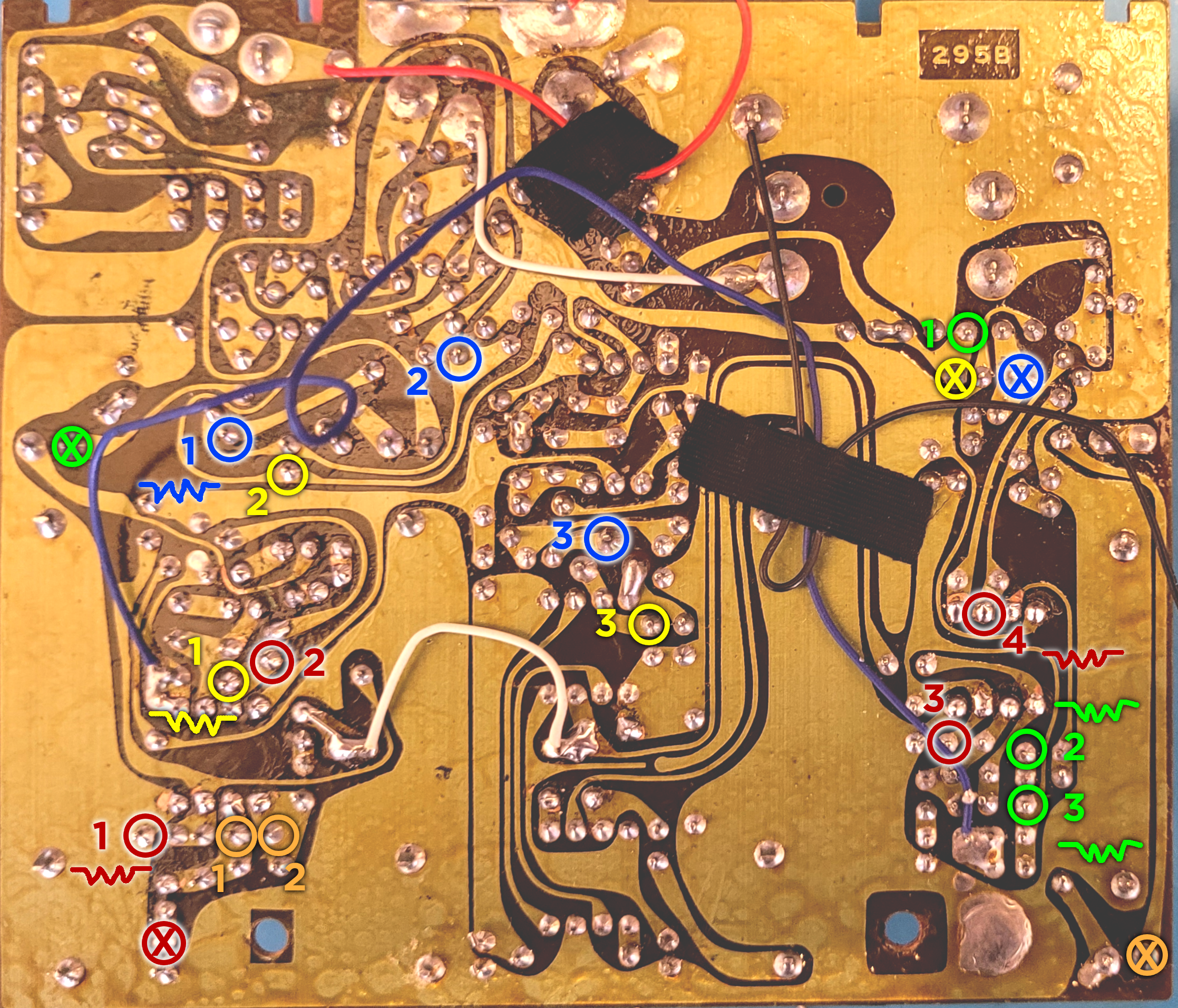

Bending Guides show specific bends that we have identified as interesting. Color-coded circles indicate separate bending points that all connect to a common point. We call this the Point of Origin (or POO) and indicate the POO with a circle marked with an “X”.

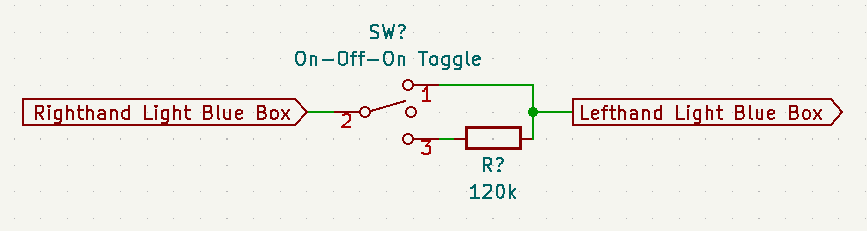

Occasionally a circle will be marked with a zigzag line . This means that we found it useful to add a potentiometer between this point and the POO.

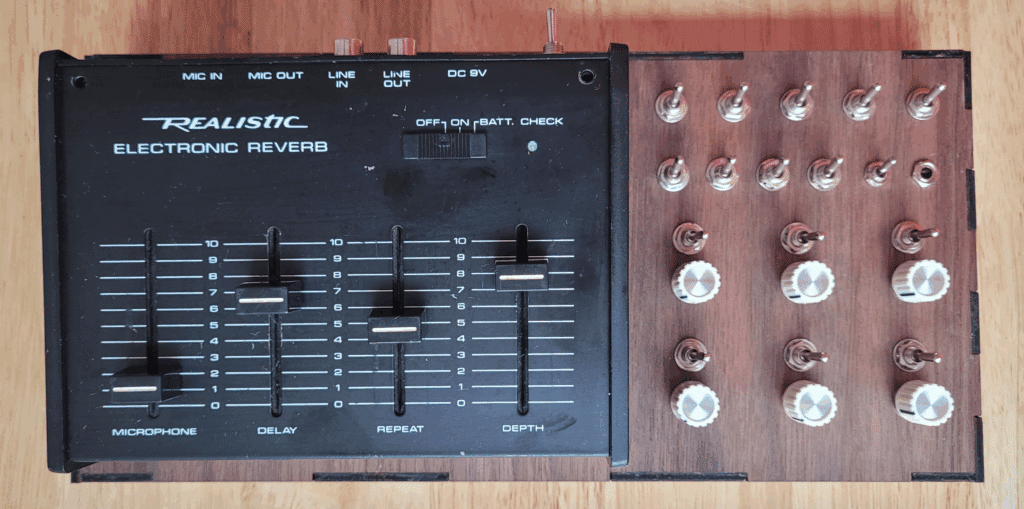

Built from: Radio Shack Realistic Reverb

Number of bends: 10

Description: Outfitted with 10 bends that create crushing walls of feedback and tone generation, the Unrealistic Reverb can be used as a noise generator in its own right.
